The supervision box UAH650 allows the data acquisition
Students will initially prepare the practical work (electrical and hydraulic connection) with the operative part to study

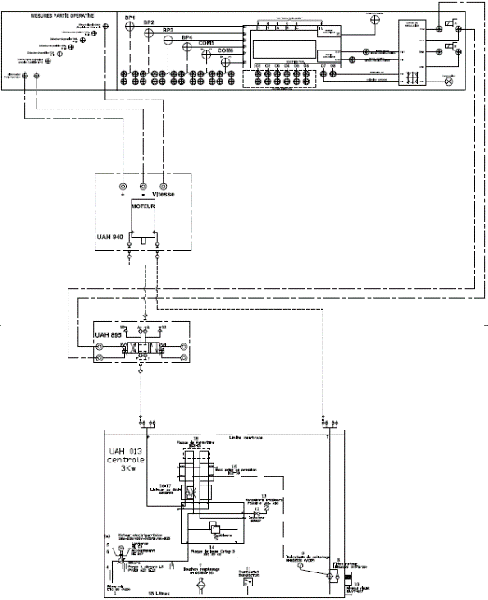

They will then connect electrically this module at a hydraulic workstation proportional and connect it to a Windows computer
They then launch software with program appropriates to the operate part to study
The unit is delivered with all the necessary material (cable and Software) to connect at the workstation and a computer
The manufactory of this equipment is conforming to European standards
- Data acquisition of velocity, position, pressure or flaw rate, according to the operative part studied
- Connection with the PLC of the Hydraulic workstation proportional
- Visualization and control of the values of velocity, position, pressure or flaw rate of the operative part connected
- Recording of data towards an Excel file type
Applications pédagogiques*
Data acquisition of velocity, position, pressure or flaw rate, according to the operative part studied
Connection with the PLC of the Hydraulic workstation proportional
Visualization and control of the values of velocity, position, pressure or flaw rate of the operative part connected
Recording of data towards an Excel file type
